TRITEC’s Multi Display Manager (MDM) is a high-reliability video processor that aggregates up to 45 input sources (including 4K) and allows to dynamically scale, position, crop or overlap them — all on up to six independent 8 MP displays. Its real-time architecture, redundant hardware, and flexible control via web, touch panel or REST API, have been specifically conceived with medical environments in mind.
Bringing Clarity and Control to Medical Environments
A system like TRITEC’s Multi Display Manager can deliver significant value in medical environments,
where fast, accurate visualization is critical. Here’s how it benefits the medical world:
Unified Imaging

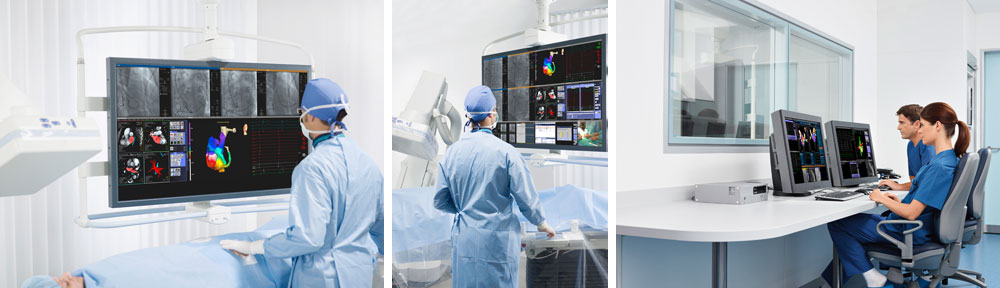

Radiology scans, patient vitals, surgical camera feeds, and EMR data can be shown together on one or multiple displays, reducing the need to switch screens.
Ultra-Reliable Image Quality
Support for high-resolution inputs (including 4K) preserves critical detail needed for radiology, pathology, and minimally invasive surgery.
Optimized Workflows
Staff can instantly rearrange, resize, or focus specific sources, helping teams respond quickly during procedures or emergencies.
Mission-Critical Reliability
Redundant hardware and 24/7 operation support ensure continuous visualization in operating rooms, ICUs, and medical command centers.
Customizable Integration
Web, panel, and API control allow hospitals to integrate MDM into existing AV, IT, and clinical workflows.
Discover the Key Features
- Up to 45 video inputs
- Supports UHD input signals
- Simultaneously support of up to six independent displays
- Real-time architecture with low latency
- Customer definable screen arrangements
- Hardware scaling with bilinear filter for best possible video quality
- High reliable design with redundancies & watch dog build for 24×7 operations
- On-Screen administration tool & API for remote control & Touch PanelPC support
- Multiple User KVM functionality fully integrated
- Hybrid Technology with 10G Fibre Ethernet and directly attached sources
- Virtual Inputs and Virtual Outputs via IP Streaming
The Multi Display Manager Supports
Multiple Ways to Configure and Control the Device
External Browser Interface
A full featured configuration WebApp is provided by the MDM by its internal LAN Interface.
OnScreen Interface

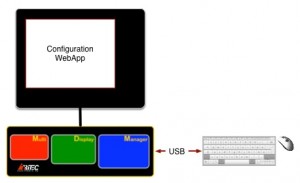

The Multi Display Manager is able to show the configuration WebApp as a single window OnScreen. It is usable by connecting a Keyboard and Mouse beneath a display to the MDM.
REST Interface
The REST Interface provides OEM partners to fully integrate the configuration of a MDM into their management environment. A well documented and standardized interface language keeping implementation efforts on a very low level.
Touch Panel PC

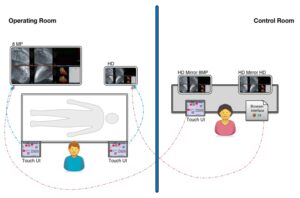

The latest development is a network attached Touch PanelPC which is able to switch the layout of a display which is attached to a Multi Display Manager. It is possible to have multiple Touch Panel PC connected to one MDM.
Explore the MDM Family

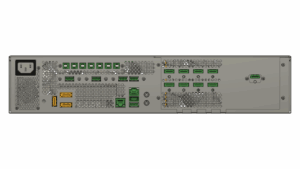

MDM-5 2U Basic
- Outputs: 2x DP, 1x HDMI, 1x Stream
- Output Licence: 1x 8MP
- Standard Inputs: 1x MDI-7 Board (9 Inputs), 4x Streams
- Maximum No. of Inputs: 9

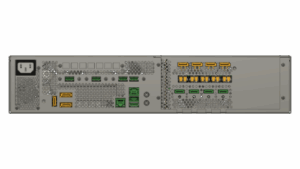

MDM-5 2U Advanced
- Outputs: 4x DP, 2x Stream
- Output Licence: 1x 8MP
- Standard Inputs: 1x MDI-7 Board (9 Inputs), 4x Streams
- Maximum No. of Inputs: 14

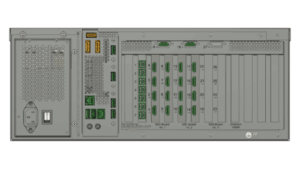

MDM-5 4U Basic
- Outputs: 2x DP, 1x HDMI, 1x Stream
- Output Licence: 1x 8MP
- Standard Inputs: 1x MDI-7 Board (9 Inputs), 4x Streams
- Maximum No. of Inputs: 45

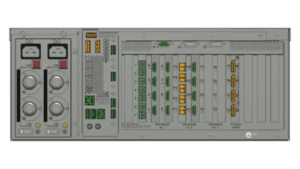

MDM-5 4U Advanced
- Outputs: 4x DP, 2x Stream
- Output Licence: 1x 8MP
- Standard Inputs: 1x MDI-7 Board (9 Inputs), 4x Streams
- Maximum No. of Inputs: 45

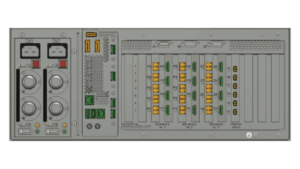

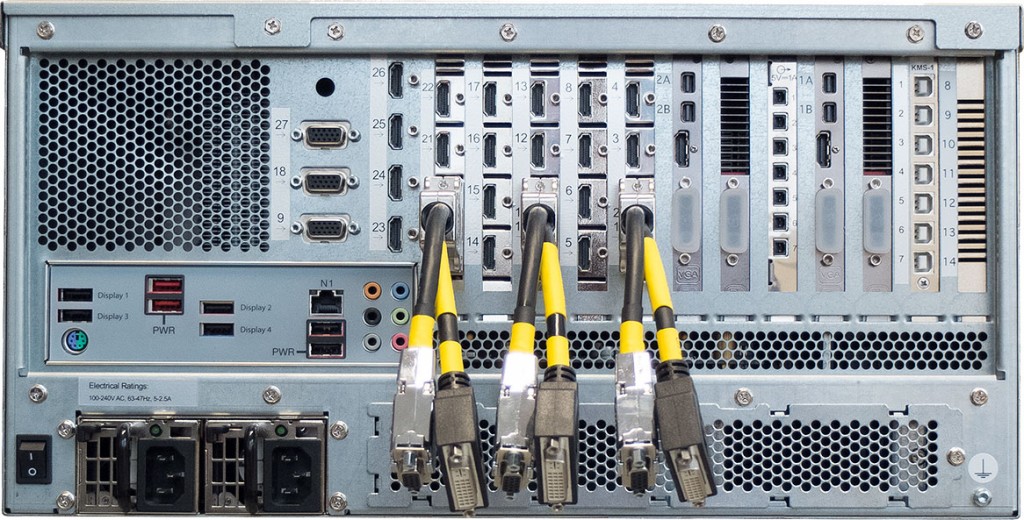

MDM-5 4U Professional
- Outputs: 6x miniDP, 2x Stream
- Output Licence: 2x 8MP
- Standard Inputs: 2x MDI-7 Board (18 Inputs), 4x Streams
- Maximum No. of Inputs: 45
- Redundant Power Supply
Technical Specifications
System Type
All-in-one unit containing complete system functionality
Video Sources
Up to 45 inputs combined and transmitted simultaneously
Display Output
Up to 6 × 8MP QFHD @ 60Hz
Input Signals
UHD digital and analog signals, 550/594 MHz pixel clock
Latency
2–3 frames from input to display (real-time architecture)
Source Control
Size, position, and scale definable by user, including overlap
Cropping
Sources can be cropped on top, bottom, left, or right
Scaling
Signal scalable by factor 0.1 to 10.0
Framing & Naming
Borders with selectable colors/thickness; custom font, color, size, and position for names
Arrangement
Sets Customer-definable layouts, easily switched via Touch Panel PC, web interface, or tablet
Storage
Arrangements storable locally and on external storage devices
Duplication
Signals can be duplicated, cropped, or resized independently
Reliability
Redundant power supply, active watchdog, no hard disk; designed for critical environments
Construction
Robust design for 24×7 operation in medical and industrial environments
Diagnostics & Status
Accessible via network
Switching Speed
Less than 500ms between predefined arrangement sets
